| Model |
|

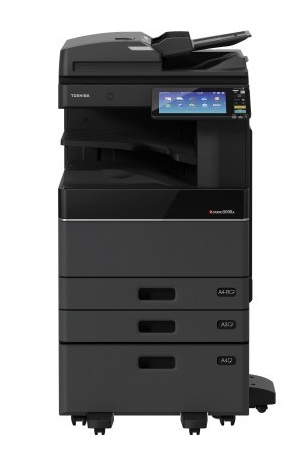

e-STUDIO2508A |
|
|
|
|
| General Feature |
| Copy / Print Speed (ppm) |
|
25 |
|
|
|
|
| Warm-up Time |
Approx. 20 sec. |
| Memory |
4 GB |
| Storage |
320GB Self-Encryption HDD |
| Dimension (W × D × H) |
585 × 585* × 787mm / 23" × 23" * × 31"* |
| Weight |
Approx. 55 kg / 121 lbs |
Approx. 58 kg / 128 lbs |
| Input Paper Capacity |
Standard |
1,200 sheets |
| Maximum |
3,200 sheets |
| Available Paper Weight |
60 - 256 g/m² / 14 lb. Bond - 140 lb. Index |
| Available Paper size |
A5-R to A3 / ST-R to LD |
| Document feeder |
Optional 300-sheet DSDF or 100-sheet RADF |
| Duplexing |
Standard |
| Finishing Option |
Multi-Position stapling finisher, Saddle Stitching Finisher, Inner Finisher, Job Separator |
| Copier Feature |
| First Copy Speed |
4.3 sec. |
3.6 sec. |
| Resolution |
2,400 × 600 dpi (with soothing) |
| Multiple Copy |
Up to 999 |
| Printer Feature |
| Resolution |
600 × 600 dpi, 2,400 × 600 dpi (with soothing), 1,200 × 1,200 (PS only), 3,600 × 600 dpi (with soothing/PS only) |
| PDL |
PCL6, PS3, XPS |
| Interface |
Standard |
USB (High speed), 10/100/1000BASE-T |
| Option |
Wireless LAN (IEEE802.11 b/g/n), Bluetooth |
| Scanner Feature |
| Resolution |
100/150/200/300/400/600dpi |
| Scan Speed |
DSDF |
Up to 240 spm (Duplex) / Up to 120 spm (Simplex) (300 dpi) |
| RADF |
Up to 73 spm (300 dpi) |
| Data format |
Standard |
TIFF, PDF, XPS, JPEG, Compressed PDF, PDF/A, Encrypted PDF |
| Option |
Searchable PDF, DOCX, EXLS, PPTX |
| Scan Protocol |
SMB, FTP, IPX/SPX, FTPS |
| Scan features |
File, Email, USB, e-Filing Box, TWAIN |
| Internet Fax |
ITU-T T.37 (Simple mode) |
| Fax Feature (option) |
| Communication mode / Modem Speed |
Super G3 / 33.6kbps |
| Data Compression |
JBIG, MMR, MR, MH |
| Number of Lines (Std. / Max.) |
1 / 2 |
| Phonebook |
3,000 stations |
| Security Feature |
| Standard |
Self-Encryption HDD, Private Print, Encrypted PDF, User Authentication, Role Based Access Control, IP/MAC address filtering, SNMPv3, SSL |
| Optional |
Data Overwrite, IPsec, FIPS certified Self-Encryption HDD |
